SITRAK-8X4 Dump Truck - G7-P Single Sleeper - Manual Transmission - Heavy Duty - Leaf Spring Suspension - 430 HP
Technical Specifications
| Feature |
Specification Details |
| Product |
SINOTRUK SITRAK 8X4 Tipper Truck |
| Steering |
LHD (Left-Hand Drive) |
| Gearbox |
Manual Gearbox |
| Cab |
G7-M Cabin with one small sleeper |
| Wheelbase |
3000 mm |
| Engine |
MC11.43-30, 430 PS, Euro III |
| Engine Technology |
MAN Technology |
| Gearbox Model |
ZF16S2230TO, 16F&2R |
| Gearbox Features |
Manual gearbox, with synchronizer, with ZF PTO |
| Front Axle |
9500 kg * 2, drum brake |
| Front Axle Technology |
MAN Technology |
| Rear Axle |
16000 kg * 2, drum brake, double reduction |
| Rear Axle Technology |
MAN Technology |
| Tires |
315/80R22.5 tubeless, with one spare tire |
| Tire Brand |
GOODYEAR brand |
| Fuel Tank |
400 L |
| Tipper Lifting System |
HYVA front lifting cylinder |
| Tipper Body Size |
6500 * 2300 * 1500 mm |
| Tipper Body Volume |
22.42 m³ |
| Body Floor Thickness |
8 mm |
| Body Side Thickness |
6 mm |
| Air Conditioning |
Yes |
| Diesel Filter |
Long-life engine diesel filter |
| Engine Brake |
Engine exhaust valve brake |
| Safety / Electronic Systems |
ABS + ASR + EBL |
| Cab Flip System |
Electronic cab-flip system |
| Driver Seat |
Driver air suspension seat |
| Intercooler Protection |
Yes |
| Reverse Alarm |
Yes |
| Tachograph |
Yes |

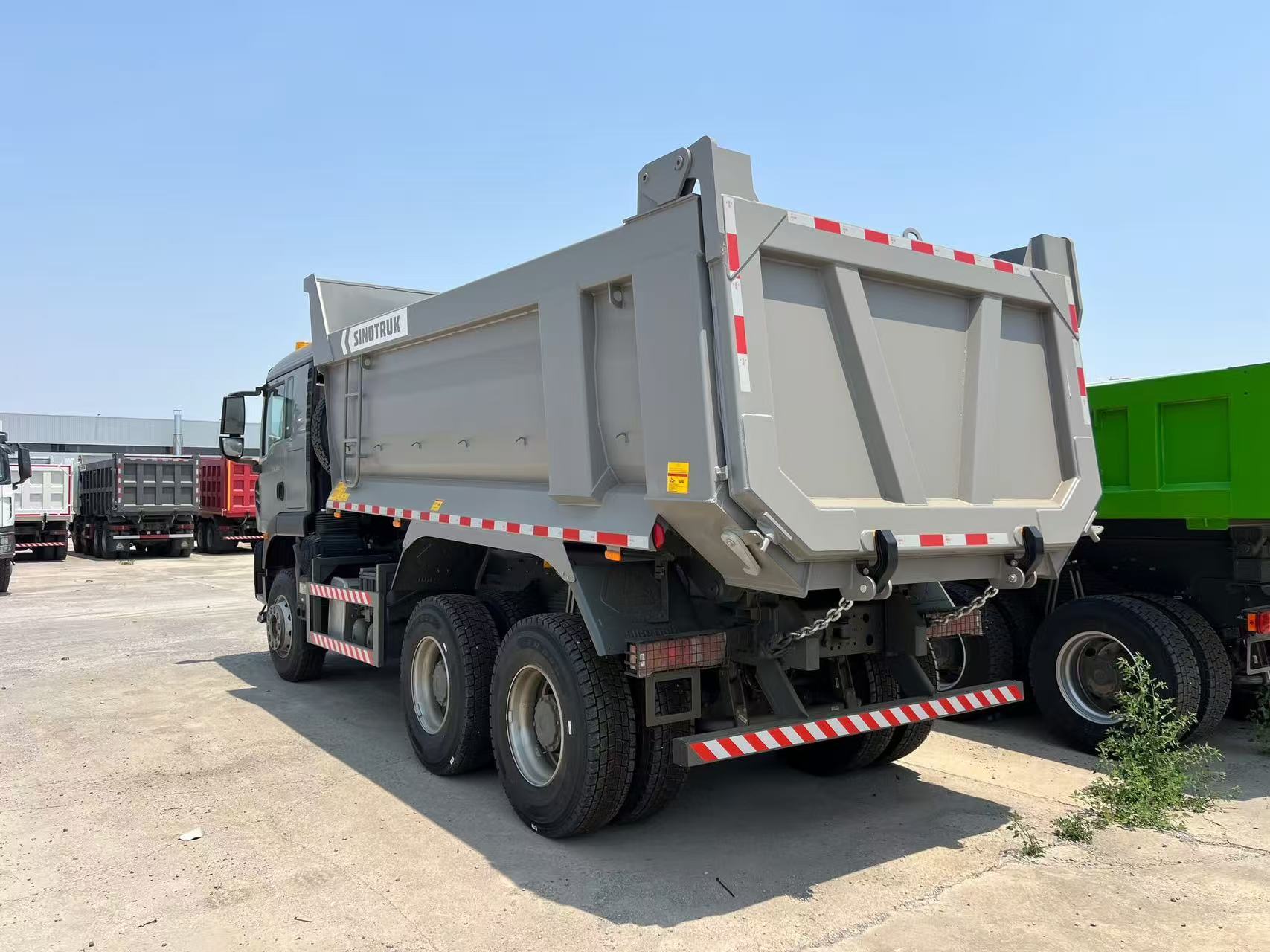

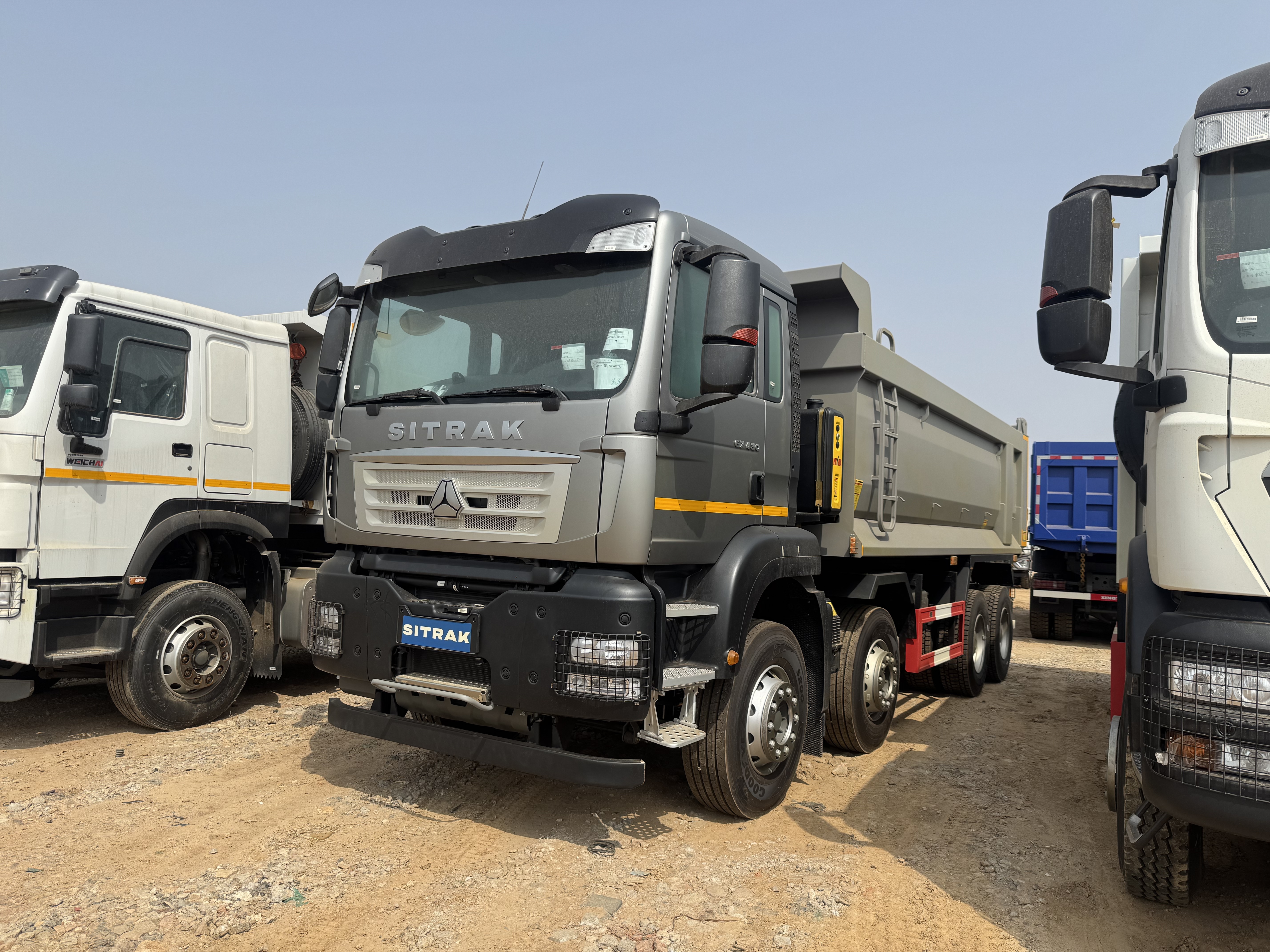

Note: Photo for reference; color is optional
African Market Applications
New SINOTRUK HOWO TX and SITRAK trucks are designed for demanding construction, mining, quarrying, road-building, logistics, and heavy-duty transportation projects across Africa.
Available Solutions
- HOWO TX 6*4 Dump Trucks
- HOWO TX 8*4 Dump Trucks
- SITRAK 6*4 Dump Trucks
- SITRAK 8*4 Dump Trucks
- SITRAK 4*2 Tractor Trucks
- SITRAK 6*4 Tractor Trucks
- Other HOWO and SITRAK special-purpose configurations
Regional Applications
Algeria - Heavy-Duty Transportation
HOWO TX 6*4 and 8*4 dump trucks are used for quarry material transportation, road construction, earthmoving, aggregate transportation, sand and gravel haulage, infrastructure projects, mining support operations, and construction-site material transportation.
West Africa Construction & Mining
Used across West African construction and mining projects for transporting sand, gravel, laterite, crushed stone, soil, construction materials, and mine-site materials with 6*4 and 8*4 configurations for different payload requirements.
Nigeria Projects
Extensive applications in quarrying, road construction, earthmoving, industrial development, and logistics with configurable cargo-body capacities and lifting systems.
Ghana Applications
Used in mining, quarrying, road construction, and heavy-duty transportation for transporting laterite, aggregate, gravel, soil, rock, and other bulk materials.
Factory Configuration Options
Customizable Parameters
Engine & Powertrain
Engine power, emission specification, transmission, PTO, rear axle configuration, and drivetrain
Chassis & Suspension
4*2, 6*4 or 8*4 configurations, axle specifications, suspension type, and chassis equipment
Dump Body
Cargo-box length, width, height, volume, steel thickness, lifting system, and body material
Cabin & Equipment
Cabin model, sleeper configuration, air-conditioning, driver's seat, electrical equipment, and safety equipment
Export & Delivery Support
Our comprehensive export service includes vehicle configuration confirmation, factory production coordination, pre-delivery inspection, export documentation, port and shipping coordination, RoRo or container shipping options, spare-parts support, and after-sales communication.
Complete Transportation Solutions
HOWO and SITRAK trucks can be combined with different semi-trailer types according to application requirements:
HOWO TX Dump Truck
For construction, quarrying, mining, earthmoving, and bulk-material transportation
SITRAK Dump Truck
For demanding construction, mining, quarry, and infrastructure applications
SITRAK Tractor Truck
For long-distance freight, heavy cargo, container transportation, and semi-trailer operations
Semi-Trailers
Flatbed, lowbed, container chassis, tanker, fence-side, dump trailer, and customized solutions
