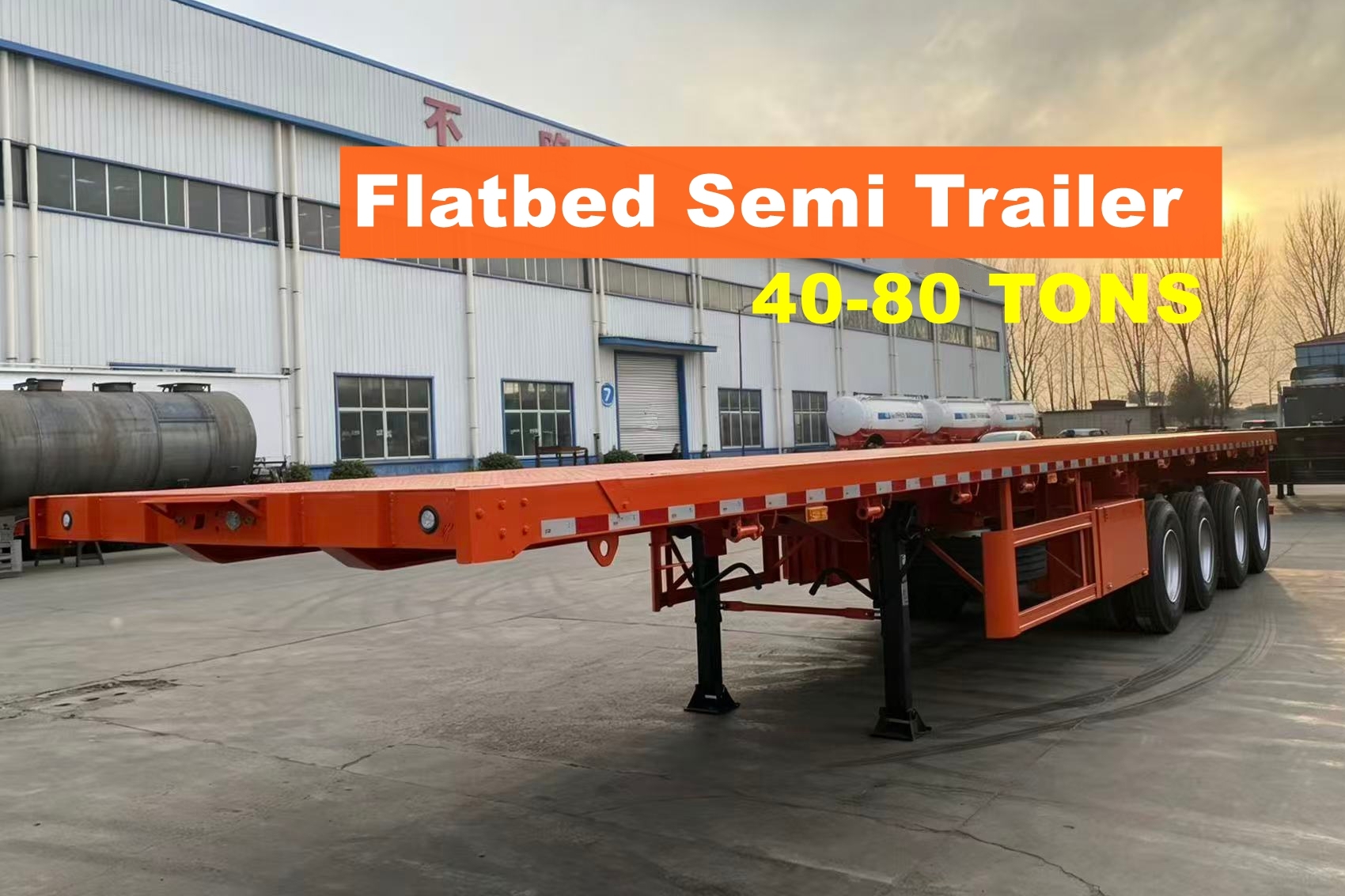

4 Axle Flatbed Semi Trailer
| Product Name |
4 Axle Flatbed Semi Trailer |
| Dimensions (mm) |
13000*2500*1460mm |
| Load Capacity (tons) |
≤80 tons |
| Axles |
4 axles |
| Pulling Force |
16 units, 12R22.5 |
| Suspension |
Mechanical suspension |
| Landing Gear |
JOST |
| Brake System |
WABCO |
Engineered for Heavy Loads and Demanding Roads
High-Strength Main Beam
The trailer frame is built around a 500 mm-high main beam made from Q345B high-strength manganese steel. Reinforced upper and lower flanges increase the beam's overall strength and rigidity, helping maintain structural stability even when carrying loads of up to 80 tons.
Proven Axle Options
The standard configuration features four 13T/16T axles, with FUWA or BPW available according to customer requirements. Both brands offer extensive parts availability across Africa, Central Asia, and South America, making routine maintenance and replacement more convenient in remote operating environments.
Reinforced Mechanical Suspension
A heavy-duty mechanical suspension system with 10 reinforced leaf springs is designed to handle challenging road conditions. The optimized suspension layout helps distribute loads more effectively, improves vehicle stability, and can reduce unnecessary tire wear during long-distance transportation.
Durable Anti-Slip Flooring
The cargo platform is fitted with 3 mm or 4 mm patterned steel floor plates, providing increased surface friction between the deck and the cargo. This helps keep containers, steel products, machinery, and other heavy loads securely positioned throughout transportation, even when operating on uneven roads.
Versatile Transport Solutions for Diverse Cargo
Efficient Container Transportation
Designed for flexible container handling, the trailer is equipped with heavy-duty container locks to ensure secure positioning during transportation. It can accommodate two 20-foot containers or one 40/45-foot container, making it suitable for ports, logistics hubs, construction sites, and long-distance freight operations.
Heavy-Duty Industrial Cargo
Featuring a flat and unobstructed loading platform, the trailer provides ample space for oversized and extra-long materials. It is well suited for transporting:
- Steel pipes
- I-beams
- Large steel coils
- Timber
- Other industrial raw materials
Its versatile platform can also handle construction machinery components, industrial equipment, and various non-standard-sized parts, offering greater flexibility for demanding industrial logistics.
Building Materials & Infrastructure Equipment
Built to support a wide range of construction and infrastructure projects, the trailer is capable of transporting:
- Bagged cement
- Sand and gravel
- Precast concrete components
- Bridge construction equipment
From daily building material deliveries to large-scale infrastructure projects, it provides a practical and reliable solution for moving essential materials and equipment efficiently.
