| Tipper Capacity: | 16 CBM | Engine Power: | 340 PS |
|---|---|---|---|
| Gearbox Type: | HW19709XST, 9F & 1R | Front Axle: | 9500 KGS Steering Axle |
| Rear Axle: | 2 × 16000 KGS Axles | Fuel Tank: | 400 L |
| WhatsApp: | 008615628785727 | Email: | Sinomicc@gmail.com |
| Contact : | Ms. CoCo | ||
| Highlight: | 340HP Engine HOWO 6x4 Dump Truck,16 CBM Capacity SINOTRUK HOWO Tipper Truck,HW76 Cab with AC Heavy-Duty Dump Truck |
||
| Specification | Details |
|---|---|

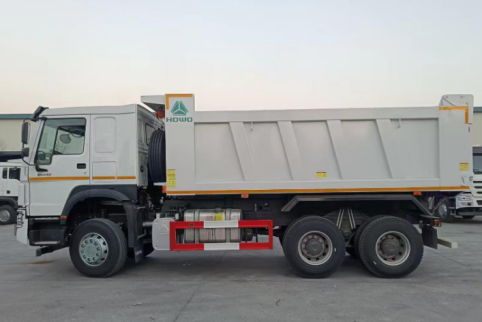

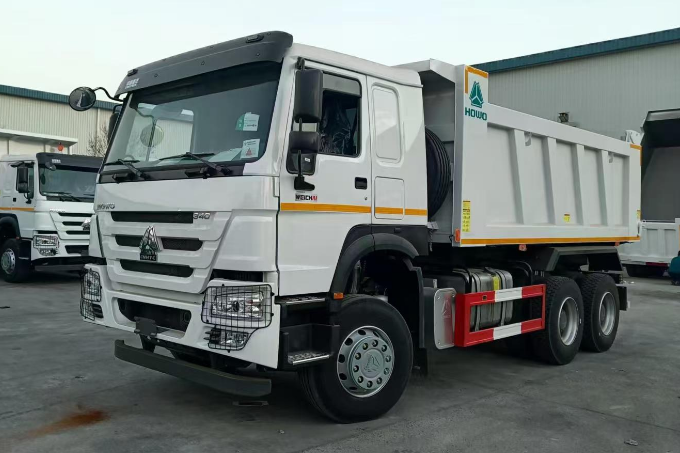

| Product | HOWO 6X4 Dump Truck (16 cubic meters) |
| Brand | SINOTRUK HOWO |
| Truck Type | 6X4 Tipper Truck |
| Drive | LHD - Left-Hand Drive |
| Tipper Capacity | 16 CBM |
| Cab | HW76 model, single sleeper, with AC |
| Engine | WEICHAI WP10.340E22, 340 PS, Euro II |
| Gearbox | HW19709XST, 9F & 1R, with synchronizer and PTO |
| Steering | LHD |
| Front Axle | 9500 KGS steering axle, drum brake |
| Rear Axle | 2 * 16000 KGS axles, drum brake |
| Suspension | Reinforced parabolic multi-leaf springs |
| Fuel Tank | 400 L |
| Tire | 315/80R22.5 tubeless, with 1 spare tire |
| ABS | 4S/4M |
| EVB | With EVB |
| Driver Seat | Air suspension seat |
| Front Underrun Protection | With |
| Intercooler Protection | With intercooler protection device |
| Rear Tow Hook | With |
| Reverse Alarm | With |
| Tachograph | With |
| Tipper Body Size | 5200 * 2300 * 1350 mm |
| Tipper Body Volume | 16 m³ |
| Body Floor Thickness | 8 mm |
| Body Side Thickness | 4 mm |
| Lifting System | Middle lifting |
| Color | Optional |
HOWO Dump Trucks / SINOTRUK Heavy-Duty Trucks are widely used for demanding mining, quarrying and aggregate transport operations. From coal and iron ore to rock, gravel and overburden, these heavy-duty tipper trucks are designed for high-load transportation on rough mining roads, laterite roads and unpaved haul routes.
For road construction, bridge construction and infrastructure projects, HOWO 6x4 and 8x4 dump trucks are used to move sand, gravel, crushed stone, asphalt and excavated materials between construction sites. With large dump bodies, heavy-duty chassis and high payload capacity, SINOTRUK HOWO tipper trucks are suitable for continuous material transportation in demanding jobsite conditions.
HOWO construction dump trucks are commonly configured for earthmoving, excavation, foundation work and debris removal. Popular configurations include 371HP diesel engines, Euro II specifications, rear tipping bodies, 6x4 drive and large-capacity dump bodies, providing practical solutions for heavy-duty construction and material handling.
For remote construction projects and difficult mountain roads, HOWO heavy-duty tipper trucks can be configured with reinforced chassis, heavy-duty axles, suitable suspension systems and cooling packages for demanding operating environments. They are used to transport rock, soil, fill material and aggregates across steep, unpaved and remote routes.
