Sitrak Dump Truck with 430 HP Engine, 22.42 m³ Tipper Body and Leaf Spring Suspension for Heavy Duty Transport

Basic Information

Place of Origin:	China
Brand Name:	SINOTRUK SITRAK
Model Number:	SITRAK 8x4 dump truck

Minimum Order Quantity:	1
Packaging Details:	Nude Packing
Delivery Time:	30 work days
Payment Terms:	T/T
Supply Ability:	200 units per month

Get Best Price

Chat Now

Detail Information

Fuel Tank Capacity:	300 Liters	Drive Type:	8x4
Suspension Type:	Leaf Spring Suspension	Bucket Volume:	22.42 Cbm
Engine Power:	430 PS	Wheelbase:	3000 Mm
Contact :	Ms. CoCo	WhatsApp:	008615628785727
Email:	Sinomicc@gmail.com
Highlight:	430 HP Engine Sitrak Dump Truck , 22.42 m³ Tipper Body Tipper Truck , Leaf Spring Suspension Heavy Duty Truck

Product Description

SITRAK 8X4 Dump Truck with 430 HP Engine, 22.42 m³ Tipper Body and Leaf Spring Suspension for Heavy Duty Transport

SITRAK-8X4 Dump Truck - G7-P Single Sleeper - Manual Transmission - Heavy Duty - Leaf Spring Suspension - 430 HP

Technical Specifications

Feature	Specification Details
Product	SINOTRUK SITRAK 8X4 Tipper Truck
Steering	LHD (Left-Hand Drive)
Gearbox	Manual Gearbox
Cab	G7-M Cabin with one small sleeper
Wheelbase	3000 mm
Engine	MC11.43-30, 430 PS, Euro III
Engine Technology	MAN Technology
Gearbox Model	ZF16S2230TO, 16F&2R
Gearbox Features	Manual gearbox, with synchronizer, with ZF PTO
Front Axle	9500 kg * 2, drum brake
Front Axle Technology	MAN Technology
Rear Axle	16000 kg * 2, drum brake, double reduction
Rear Axle Technology	MAN Technology
Tires	315/80R22.5 tubeless, with one spare tire
Tire Brand	GOODYEAR brand
Fuel Tank	400 L
Tipper Lifting System	HYVA front lifting cylinder
Tipper Body Size	6500 * 2300 * 1500 mm
Tipper Body Volume	22.42 m³
Body Floor Thickness	8 mm
Body Side Thickness	6 mm
Air Conditioning	Yes
Diesel Filter	Long-life engine diesel filter
Engine Brake	Engine exhaust valve brake
Safety / Electronic Systems	ABS + ASR + EBL
Cab Flip System	Electronic cab-flip system
Driver Seat	Driver air suspension seat
Intercooler Protection	Yes
Reverse Alarm	Yes
Tachograph	Yes

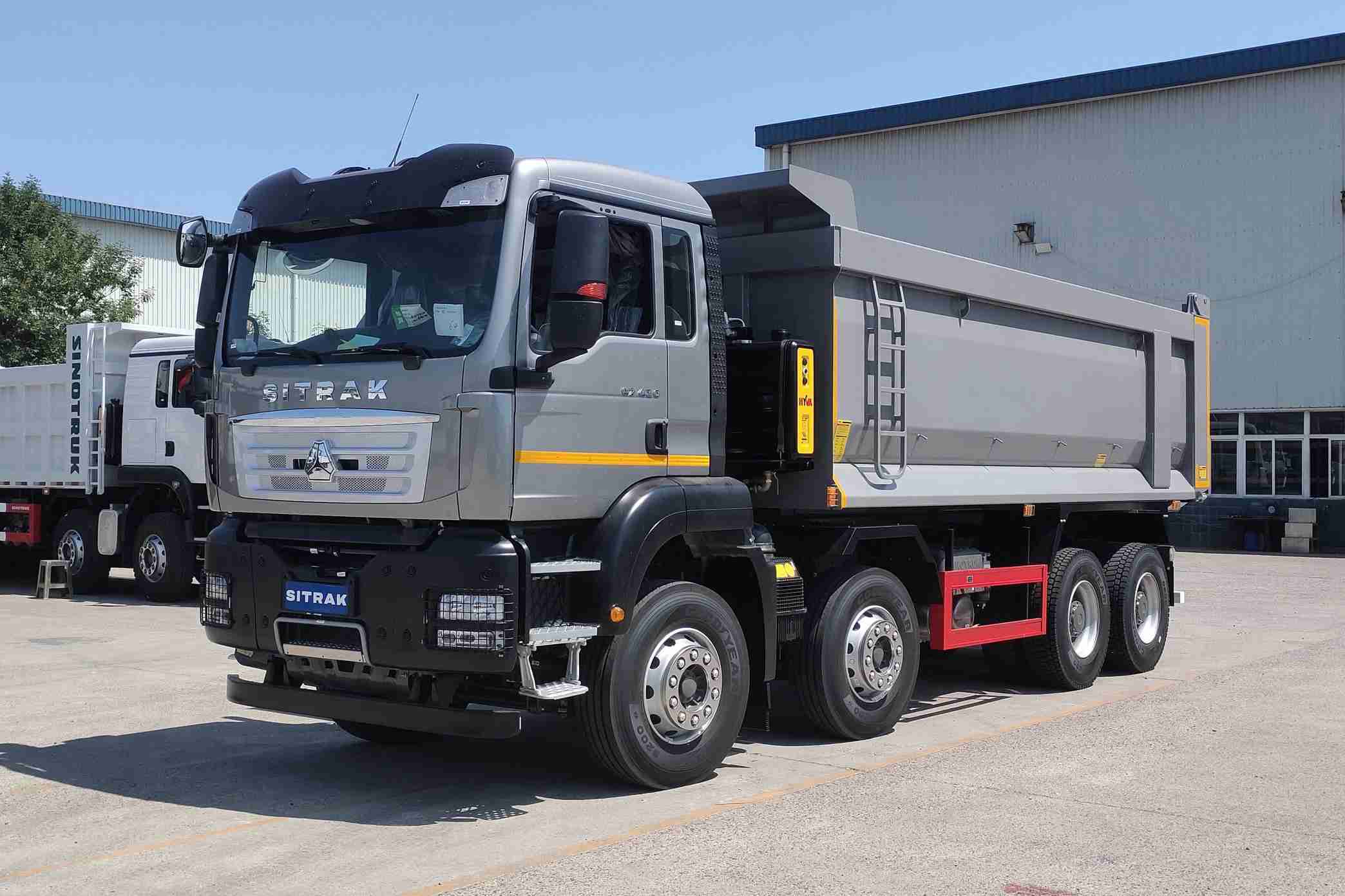

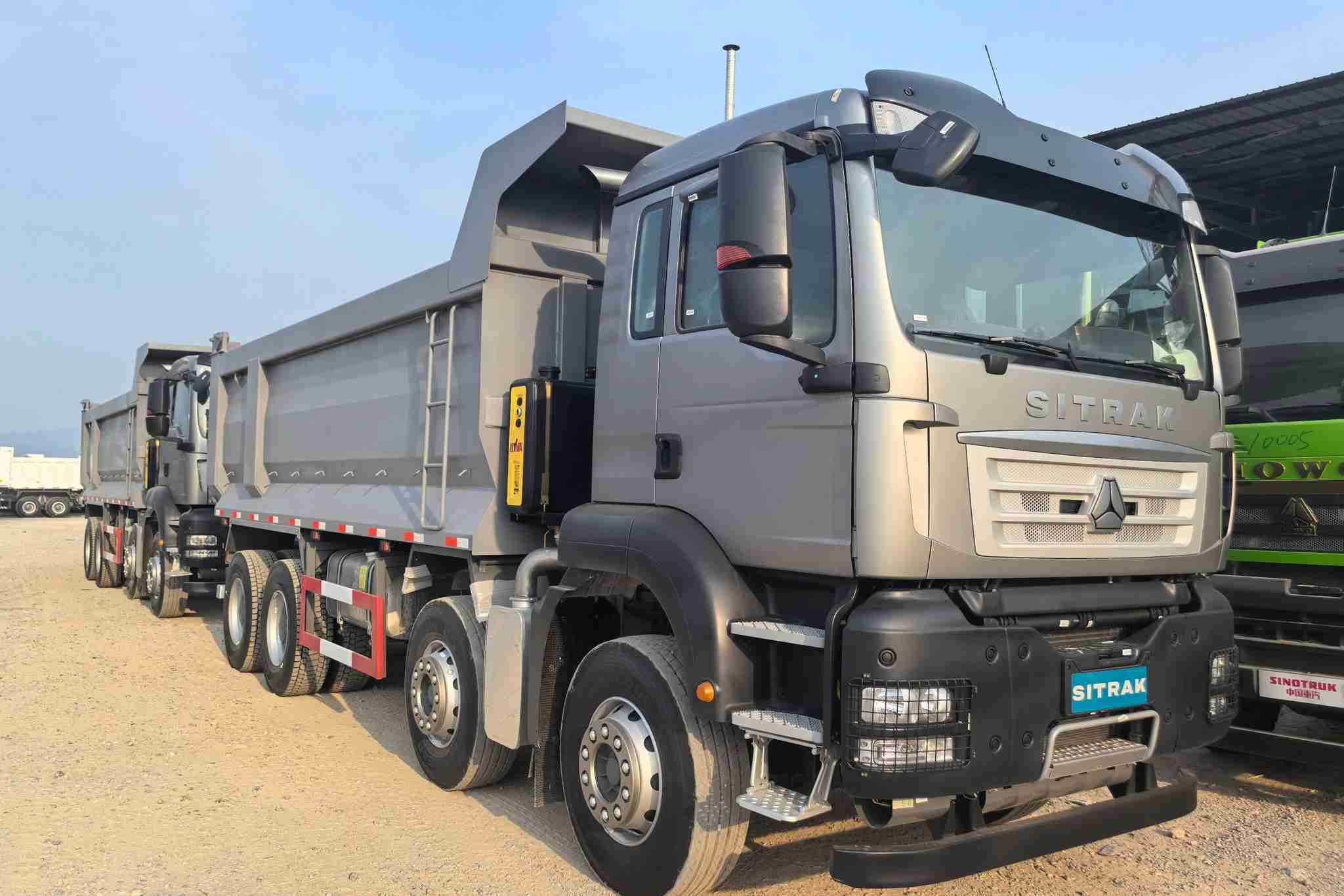

Note: Photo for reference; color is optional

African Market Applications

New SINOTRUK HOWO TX and SITRAK trucks are designed for demanding construction, mining, quarrying, road-building, logistics, and heavy-duty transportation projects across Africa.

Available Solutions

HOWO TX 6*4 Dump Trucks
HOWO TX 8*4 Dump Trucks
SITRAK 6*4 Dump Trucks
SITRAK 8*4 Dump Trucks
SITRAK 4*2 Tractor Trucks
SITRAK 6*4 Tractor Trucks
Other HOWO and SITRAK special-purpose configurations

Regional Applications

Algeria - Heavy-Duty Transportation

HOWO TX 6*4 and 8*4 dump trucks are used for quarry material transportation, road construction, earthmoving, aggregate transportation, sand and gravel haulage, infrastructure projects, mining support operations, and construction-site material transportation.

West Africa Construction & Mining

Used across West African construction and mining projects for transporting sand, gravel, laterite, crushed stone, soil, construction materials, and mine-site materials with 6*4 and 8*4 configurations for different payload requirements.

Nigeria Projects

Extensive applications in quarrying, road construction, earthmoving, industrial development, and logistics with configurable cargo-body capacities and lifting systems.

Ghana Applications

Used in mining, quarrying, road construction, and heavy-duty transportation for transporting laterite, aggregate, gravel, soil, rock, and other bulk materials.

Factory Configuration Options

Customizable Parameters

Engine & Powertrain

Engine power, emission specification, transmission, PTO, rear axle configuration, and drivetrain

Chassis & Suspension

4*2, 6*4 or 8*4 configurations, axle specifications, suspension type, and chassis equipment

Dump Body

Cargo-box length, width, height, volume, steel thickness, lifting system, and body material

Cabin & Equipment

Cabin model, sleeper configuration, air-conditioning, driver's seat, electrical equipment, and safety equipment

Export & Delivery Support

Our comprehensive export service includes vehicle configuration confirmation, factory production coordination, pre-delivery inspection, export documentation, port and shipping coordination, RoRo or container shipping options, spare-parts support, and after-sales communication.

Complete Transportation Solutions

HOWO and SITRAK trucks can be combined with different semi-trailer types according to application requirements:

HOWO TX Dump Truck

For construction, quarrying, mining, earthmoving, and bulk-material transportation

SITRAK Dump Truck

For demanding construction, mining, quarry, and infrastructure applications

SITRAK Tractor Truck

For long-distance freight, heavy cargo, container transportation, and semi-trailer operations

Semi-Trailers

Flatbed, lowbed, container chassis, tanker, fence-side, dump trailer, and customized solutions
